Purposeful Design Hand Pumps

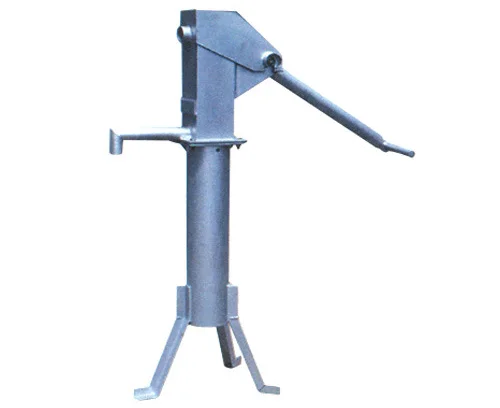

Experience the Innovation – The ASIA Hand Pump, a miniature Afridev water pump, is set to make a profound impact on water access in regions like Afghanistan. Named “ASIA” due to its extensive installation across the country, this innovation is the result of collaborative efforts by prominent organisations such as DACAAR (Danish Committee for Aid to Afghan Refugees) and UNICEF Afghanistan.

The ASIA Hand Pump is specifically designed for regions with economic constraints, where water is a precious resource. Engineered to meet the specifications of SKAT-HTN Switzerland, this pump features a 50 mm diameter open-top uPVC brass-lined cylinder assembly with extractable plunger and foot valve assemblies.

The ASIA Hand Pump is not just a piece of technology; it’s a lifeline for communities facing water challenges. With its thoughtful design, reliability, and ease of maintenance, it exemplifies progress through innovation. Join us in bringing sustainable water solutions to the forefront. Discover the ASIA Hand Pump and be a part of transforming lives through accessible water.


About our product

Asia Hand Pump Remarkable Capabilities

  • Water Level Setting Depth: Up to 25 meters
  • Minimum Bore Diameter: 100 mm
  • Discharge per Stroke: 440 ml
  • Discharge per 60 Strokes/Minute: 24 liters
  • Discharge per Hour: 900 liters
  • PVC Riser Pipe: 63 mm OD × 4.7 mm wall thickness
  • MS/SS Connecting Rod Diameter: 10 mm
  • Stroke Length: 225 ± 6 mm

Exceptional Features, Exceptional Benefits

  • Depth Suitability: Suitable for depths up to 20 meters, catering to both boreholes and hand-dug wells.
  • Interchangeable Parts: Compatible with Afridev Hand Pump components, enhancing practicality.
  • Lightweight Construction: Designed for ease of handling.
  • Optimised Usability: Features a non-adjustable yet lighter handle for improved usability.
  • Ingenious Construction: For Reliable Performance

Ingenious Construction for Reliable Performance

The ASIA Hand Pump is an assembly of four vital components, meticulously crafted for enduring performance.

Pump Head Assembly

A fully galvanised steel structure with an adjustable handle, offering various settings for different cylinder depths. The conical flange with a rubber grommet ensures a secure hold on the uPVC riser pipe.

Cylinder Assembly

The heart of the pump, this assembly includes a uPVC pipe lined with a seamless brass liner, accommodating interchangeable plunger and foot valves. It features innovative elements like an extraction-friendly foot valve.

Riser Pipe

Connecting the cylinder to the pump head, the uPVC pipe has a 63 mm outer diameter and a wall thickness of 4.7 mm. With socket-spigot cemented joints and rubber pipe centralisers, water passage is optimised while preventing contact with the casing pipe.
